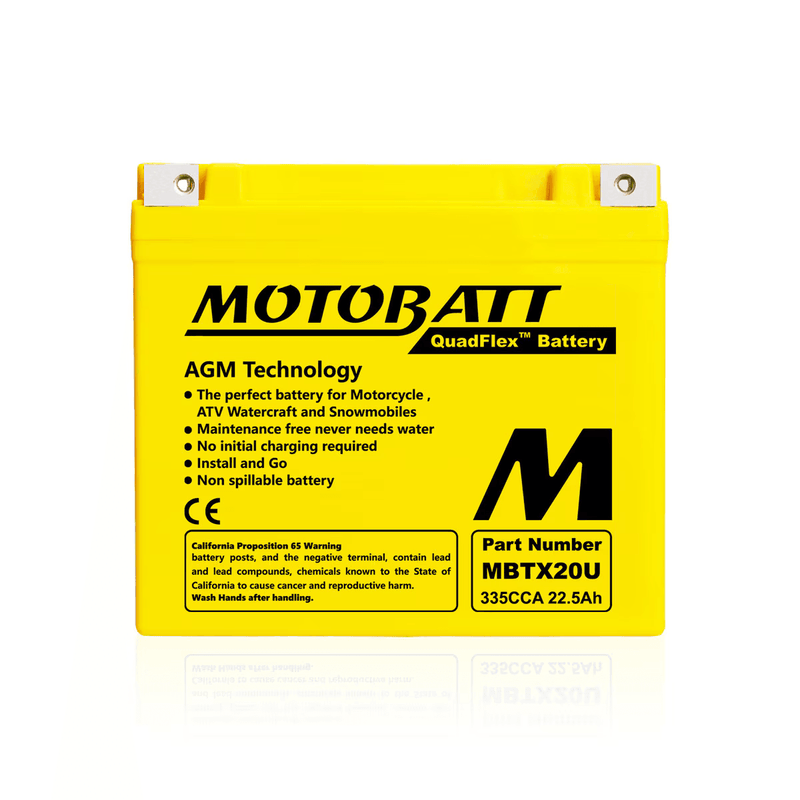

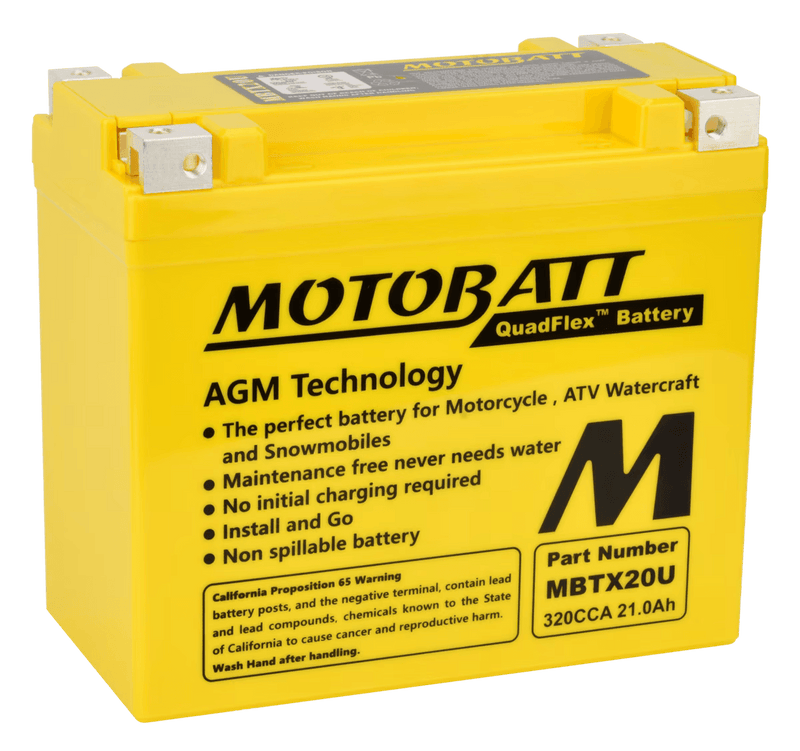

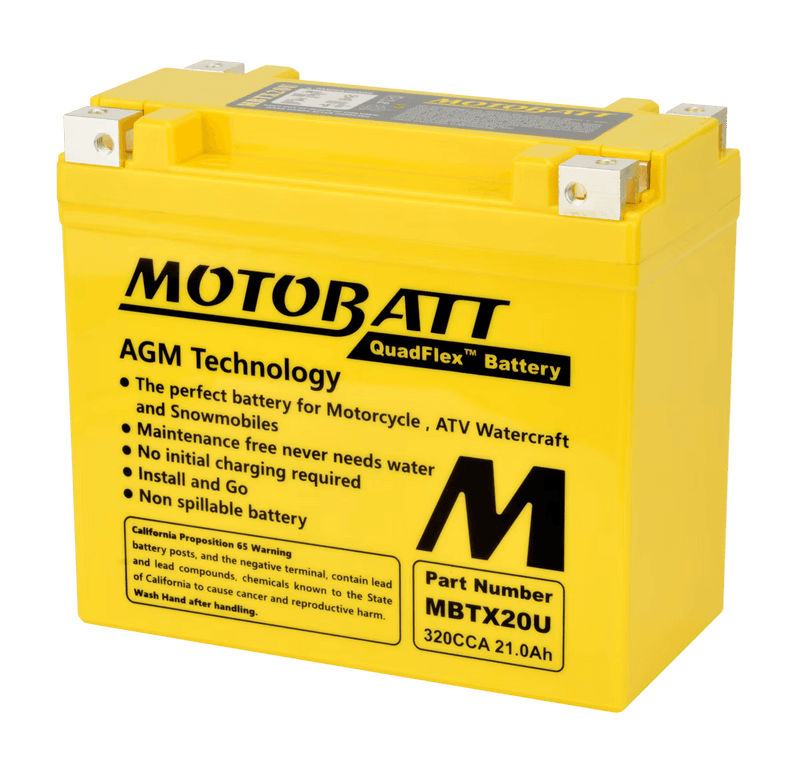

Motobatt MBTX20U

PLEASE WHATSAPP TO CONFIRM STOCK AVAILABILITY

OR EMAIL info@maxinc.co.za

PLEASE VERIFY COMPATIBILITY AND SIZES - NO REFUNDS / EXCHANGES ON BATTERIES

BATTERIES ARE NOT KEPT ON SITE. DELIVERY WILL BE DONE DIRECTLY FROM THE WAREHOUSE AND CAN TAKE 2-5 DAYS DEPENDING ON LOCATION.

Typical PowerSports battery designs available on the market today have not changed for many years. By listening to you, our valued customers and by studying the way PowerSports batteries are used in market where the 'Triple Threat" of

1. High vibration
2. High Starting Loads and now more than ever
3. Additional high powered accessory loads are all very common

Motobatt's innovative internal 'Power Balanced' design has been developed to overcome these problems. Many claims are made by different manufacturers about cranking capacity in fact there is little to be gained from a battery that cranks harder than what is required to start your bike. In battery design there is always a tradeoff. Since physical battery size is limited by the application / case size, the more cranking power (increased number of thinner plates) you have, the less Amp Hour capacity you get, and vice versa. The key is to 'balance" the design to offer maximum AH and CCA's to properly power all of your 'thirsty' OE and aftermarket accessories.

MB Item Number	MBTX20U
Voltage	12
CCA	310
Capacity (10HR)	21
Weight	6.50kg / 14.33lbs
Dimensions (in / mm)	L: 6.89 (175)  W: 3.43 (87)  H: 6.10 (155)
Assembly Figure Terminal Locations	4
Terminal	4, M6x2.5 (Parts#MPT2 and #MPT3)
Screws	4, M6x7 (Part#2xMPS2)
Allen Wrench	1, 4x4 (Part#MPAK2)
Terminal Caps	4, 12x5.5 (Part#2xMPC2)
Spacer	2, 20mm Bottom (Part# MPBS7), 13mm Back (Part#MPSS)
Case Color	Yellow
Cap Style	NA
Replaces	12N163A, 12N163B, 12N164A, 12N164B, YTX20BS, YTX20HBS, YTX20LBS, YTX20HLBS, YTX20HLBSPW, YB16A, YB16A2, YB16B, YB16B2, YB16HLACX, SYB16LB, YB16LA, YB16LA2, YB16LB, YB16LB2, YB16CB, YB16CLB, YB16BCX, GT16L-BS, GT16-BS, CTX19L-BS, CTX19-BS, GYZ20L, GYZ20HL

Application

• HARLEY-DAVIDSON XLH (Sportster) (86-96) - 883CC
• HARLEY-DAVIDSON XL, XLH (Sportster) (97-03) - 883CC
• HARLEY-DAVIDSON XLCR Cafe Racer (77-78) - 1000CC
• HARLEY-DAVIDSON XLX-61, XR1000 (83-85) - 1000CC
• HARLEY-DAVIDSON XL Series (Sportster) (79-85) - 1000CC
• HARLEY-DAVIDSON XL Series (Sportster) (87-93) - 1100CC
• HARLEY-DAVIDSON FX Series (Electric Start) (71-78) - 1200CC
• HARLEY-DAVIDSON XL, XLH (Sportster) (97-03) - 1200CC
• HARLEY-DAVIDSON XL, XLH (Sportster) (87-96) - 1200CC
• HARLEY-DAVIDSON FLST Series (Softail) (97-99) - 1340(80)CC
• HARLEY-DAVIDSON FLST Series (Softail) (91-96) - 1340(80)CC
• HARLEY-DAVIDSON FXST/FLST Series (Softail) (84-90) - 1340(80)CC
• HARLEY-DAVIDSON FXD/FXST Series (Dyna) (91-96) - 1340(80)CC
• HARLEY-DAVIDSON FXD/FXST Series (Dyna) (97-99) - 1340(80)CC
• HARLEY-DAVIDSON FX/FXR Series (79-94) - 1340(80)CC
• HARLEY-DAVIDSON FXR Series (99-00) - 1340(80)CC
• HARLEY-DAVIDSON FXD Series (Dyna) (99-06) - 1450(88)CC
• HARLEY-DAVIDSON FXST, FLST Series (Softail) (00-06) - 1450(88)CC
• HARLEY-DAVIDSON FXD Series (Dyna) (07-12) - 1584(96)CC
• HARLEY-DAVIDSON FXST, FLST Series (Softail) (07-12) - 1584(96)CC
• HARLEY-DAVIDSON FXD (Dyna) (11-12) - 1690(103)CC
• HARLEY-DAVIDSON FLS (Softail) (11-12) - 1690(103)CC
• HARLEY-DAVIDSON CVO FLST (Softail) (10-12) - 1803(110)CC
• HARLEY-DAVIDSON CVO FXD (Dyna) (10-12) - 1803(110)CC
• HONDA CBX1000 Super Sport (79-82) -1000CC
• HONDA VF1100C V65 Magna (83-86) - 1100CC
• HONDA VF1100S V65 Sabre (84-85) - 1100CC
• HONDA GL1800 Gold Wing (09-12) - 1800CC
• HONDA GL1800 Gold Wing (01-08) - 1800CC
• HONDA VTX1800C, F, N, R Retro, S (02-11) - 1800CC
• HONDA NRX1800 Valkyrie Rune (04-05)- 1800CC
• KAWASAKI KZ1000-P Police (82-01) - 1000CC
• KAWASAKI KZ1000-C Police (80-81) - 1000CC
• KAWASAKI KZ1000-P Police (02-03/05) - 1000CC
• KAWASAKI KZ1000-R Replica (82-83) - 1000CC
• KAWASAKI KZ1000-E ST, Shaft (79-80) - 1000CC
• KAWASAKI KZ1000, LTD, CSR (81-83) - 1000CC
• KAWASAKI ZG1000-A, Concours (86-06) -1000CC
• KAWASAKI KZ1100-A, LTD (81-83) - 1100CC
• KAWASAKI KZ1100-B GP (81 & 82) -1100CC
• KAWASAKI ZX1100-A GPz (83-84) - 1100CC
• YAMAHA XV17AT Road Star, Silverado (04-07) - 1700CC
• YAMAHA XV1600 Road Star (99-03) - 1600CC
• YAMAHA XVZ13 Royal Star/Venture(All) (96-12) - 1300CC
• YAMAHA XVS13AY V Star 1300, Stryker (09-12) - 1300CC
• YAMAHA TX750 (73-74) - 750CC

• BUELL X1 Lightning (99-02) - 1200CC
• BUELL S3, S3T Thunderbolt (97-02) - 1200CC
• BUELL S2, S2T Thunderbolt (94-96) - 1200CC
• BUELL M2 Cyclone (97-02) - 1200CC
• BUELL RR1200 (88-90) - 1200CC
• BUELL RS1200 (89-93) - 1200CC
• BUELL RSS1200 (91-93) - 1200CC
• BUELL RR1000 (87) - 1000CC
• DUCATI I.E.Paso (90-94) - 907CC
• DUCATI Paso (90-92) - 906CC
• EXCELSIOR-HENDERSON Super X (99-00) - 1386CC
• INDIAN 1442 Scout, Spirit (02-03) - 1442CC
• INDIAN All Models (99-01)
• MOTO GUZZI California Classic, Vintage (-12) - 1064CC
• MOTO GUZZI Bellagio (-10) - 936CC
• MOTO GUZZI Nevada - 750CC
• MOTO GUZZI NTX - 750CC
• MOTO GUZZI Strada - 750CC
• MOTO GUZZI V75 - 750CC
• MOTO GUZZI NTX - 650CC
• MOTO GUZZI V65 Florida - 650CC
• MOTO GUZZI Falcone u,t - 500CC
• TRIUMPH Rocket III (03-12) - 2300CC
• TRIUMPH Thunderbird (10-12) - 1600CC

• KAWASAKI KAF450, Mule 1000 - 450CC
• KAWASAKI KAF540, Mule 2012, 2020, 2030 - 540CC
• KAWASAKI KAF620, Mule 3010 4x4 Advantage Classic (03-07) - 620CC
• KAWASAKI KAF620, Mule 2500, 2510, 2520 - 620CC
• KAWASAKI KAF620, Mule 3000, 3010, 3020 - 620CC
• KAWASAKI KAF620, Mule 4010 4x4 (CN) (-12) - 620CC
• SUZUKI QUV620F (05) - 620CC
• HONDA (Optional cold starting) (03-04) - 650CC
• HONDA TRX680FA Four Trax Rincon (06-12) - 680CC
• JOHN DEERE All Models (All Years)
• KAWASAKI KLF300-A Bayou (86-87) - 300CC
• KAWASAKI KLF300-B Bayou (CN) (92-99) - 300CC
• KAWASAKI KLF300-C Bayou 300 4x4 (CN) (92-05) - 300CC
• KAWASAKI KVF300-A Prairie 300, 4x4 (CN) (99-01) - 300CC
• KAWASAKI KVF300-B Prairie 300, 4x4 (CN) (99-02) - 300CC
• KAWASAKI KLF400-B Bayou 400 4x4 (93-00) - 400CC
• KAWASAKI KVF400-A Prairie 400 4x4 (CN) (97-00) - 400CC
• YAMAHA YFM40FB Big Bear (00-12) - 400CC
• YAMAHA YFM40FW Kodiak/Automatic (96-02) - 400CC
• YAMAHA YFM400FWN Big Bear (00-03) - 400CC
• YAMAHA YFM45FX Wolverine (03-10) - 450CC
• YAMAHA YFM5FG Grizzly (-12) - 550CC
• YAMAHA YFM600FW Grizzly (98-01) - 600CC
• YAMAHA YFV600FW Grizzly (98-01) - 600CC
• YAMAHA YFM66FA Grizzly (02-08) - 660CC
• YAMAHA YFM7FG Grizzly (07-12) - 700CC
• HONDA AquaTrax F/R-12, F/R-12X (02-09) - 1235CC
• HONDA AquaTrax F-15, F-15X (03-12) - 1470CC
• KAWASAKI (JET SKI) JH750 B1-b3 (93-95) - 750CC
• KAWASAKI (JET SKI) JH750 E1, F2, G1, G2 (95-99) - 750CC
• KAWASAKI (JET SKI) JH750 SS, ST, Xi, XiR (92-99) - 750CC
• KAWASAKI (JET SKI) JH750 ST, Zxi (95-97) - 750CC
• KAWASAKI (JET SKI) JH750 SX, ZX (92-95) - 750CC
• KAWASAKI (JET SKI) JS750 SX, Zx (92-95) - 750CC
• KAWASAKI (JET SKI) JS750 Sxi, Sxi Pro (95-02) - 750CC
• KAWASAKI (JET SKI) JT750 STS, STX (96-98) - 750CC
• KAWASAKI (JET SKI) JS800 SX-R (03-12) - 800CC
• KAWASAKI (JET SKI) JH900 Zxi (95-97) - 900CC
• KAWASAKI (JET SKI) JT900 STS, STX (97-05) - 900CC
• KAWASAKI (JET SKI) JH1100 Zxi (96-03) - 1100CC
• KAWASAKI (JET SKI) JH1100-B Ultra 130 (01-04) - 1100CC
• KAWASAKI (JET SKI) JT1100 STX (97-03) - 1100CC
• KAWASAKI (JET SKI) JH1200-A, B Ultra 150 (99-05) - 1200CC
• KAWASAKI (JET SKI)JT1200-A-B,C,STX-R,STX-12F(02-07)-1200CC
• KAWASAKI (JET SKI) JT1500-A, STX, STX-15F (04-12) - 1500CC
• KAWASAKI(JETSKI)JT1500B,C,250X,UltraLX,260(L)X,300(L)/X
• YAMAHA All Wave Runner Models (87-08) - All CC
• YAMAHA Superjet (09-12) - 700CC
• YAMAHA VX (09-12) - 1100CC
• YAMAHA FX, FZR, FZS, VXS, VXR (09-12) - 1800CC

• YAMAHA Vector (-09) - 973CC
• YAMAHA Viking (-09) - 973CC
• YAMAHA RS1000S, GT, RS (06-12) - 1000CC
• YAMAHA RX 1000R RX (All Models) (03-05) - 1000CC
• YAMAHA FX Nitro (-12) - 1049CC
• YAMAHA RS Venture (-12) - 1049CC
• YAMAHA RS Vector (-12) - 1049CC
• YAMAHA RS Viking professional (09-12) - 1049CC
