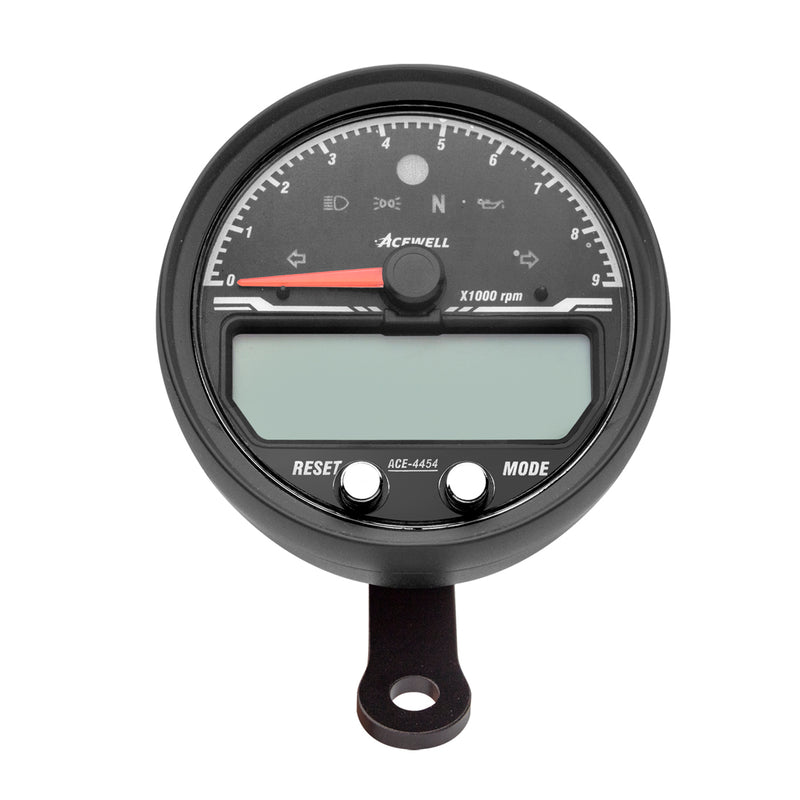

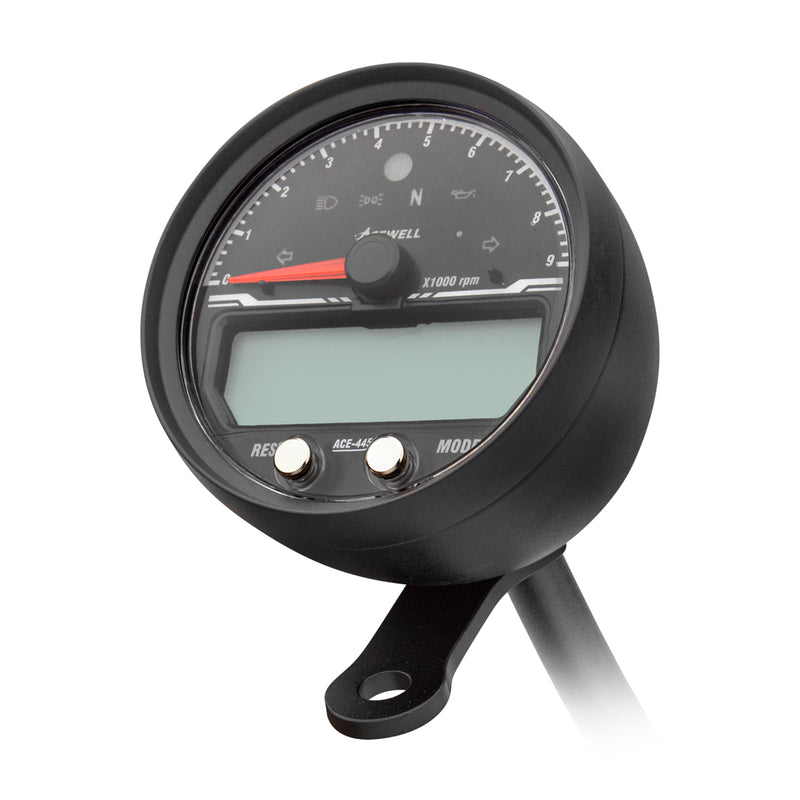

ACEWELL Speedometer/Tachometer ACE-4454-AB
0-9000RPM Scale rev counter in BLACK BILLET case
Slightly bigger CNC pod than ACE-2xxx series

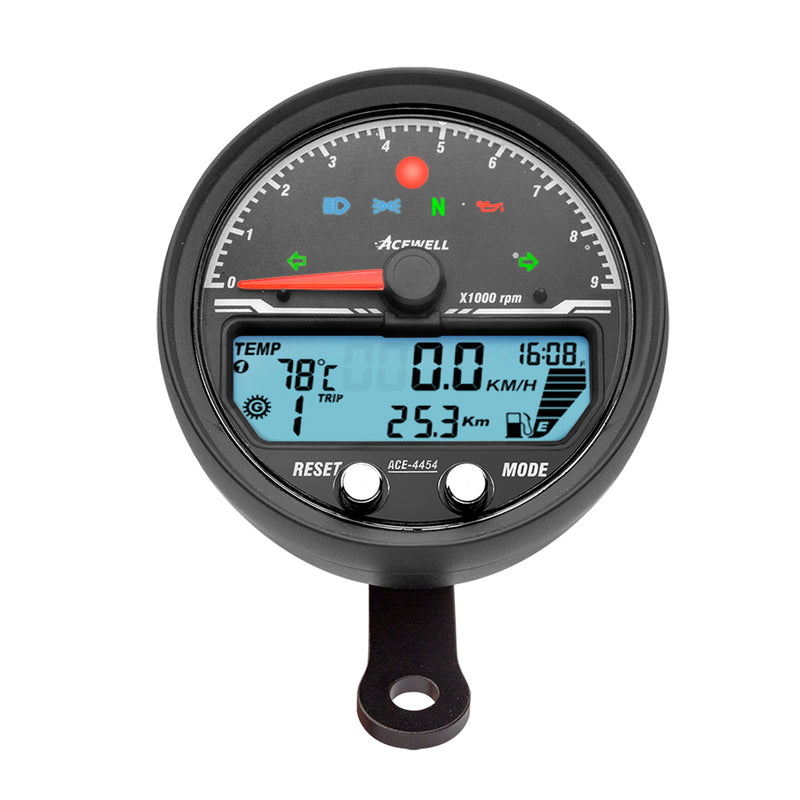

The dash has speed, RPM, clock, temperature, fuel and gear indicator as the main functions as well as 6 warning lamps.
RPM scale is shown with a 270 degree needle
Optional remote control which mounts on the left handlebar replicates the pressing of the set and mode buttons.
Included in the kit
- Head unit
- Temperature Sensor: optional and air temp sensor
- Mounting Bracket: integral in CNC pod
- Mounting Kit: anti vibration washer
- Speed Sensor: Reed sensor or hall sensor options
- Mating multi-pin plugs and cables to solder / crimp into bike wiring (pigtails)
- Operating Instructions
- Wiring diagram
| Analogue Needle Tachometer | 0-9000 RPM |
| Digital Speed Readout (SPD) | 0 - 248MPH / 400Km/h |
| Maximum Speed Display (MAX SPD) | 0 - 248MPH / 400Km/h |
| Average Speed Display (AVG) | 0 - 248MPH / 400Km/h |
| Max Speed Sensor Input Frequency | 7KHz (reed sensor / hall sensor / cable drive / electronic gearbox speed sensors) |
| Odometer (ODO) | 0-999,999 km / 0-624,999 miles |
| Trip Meter | 2 trips, 0-999 km / 0-625 miles |
| Clock | 12 / 24 hour clock displayed at all times |
| Resettable Riding Timer (RT) | 0 - 99h 59min 59sec |
| Non-resettable Riding Timer (TT) | 0 - 9999h 59min |
| Temperature Gauge | Maximum 160c / 320f |
| Temperature Sensors | 1 Engine & 1 Air |
| Remote Control Option | Socket fitted to speedometer, remote available as an option |
| Warning Lamps | 7 |
| Gear Indicator | 1-8, N |
| Digital Rev Counter | 0-20,000 RPM |
| Needle Rev Counter | 0-9,000 RPM |
| Operating Power | 12v (DC, Negative earth) |
| Voltmeter | 8v-18v |
| Bar Chart Fuel Gauge Input Resistance | off or +/- 100 / 250 / 510 ohm |
| Backlight | Multicolour can be set at various levels of Red, Green and Blue |
| Connector Plugs | 090 series |
| Plastic Case Dimensions | 80mm diameter x 68mm pod |

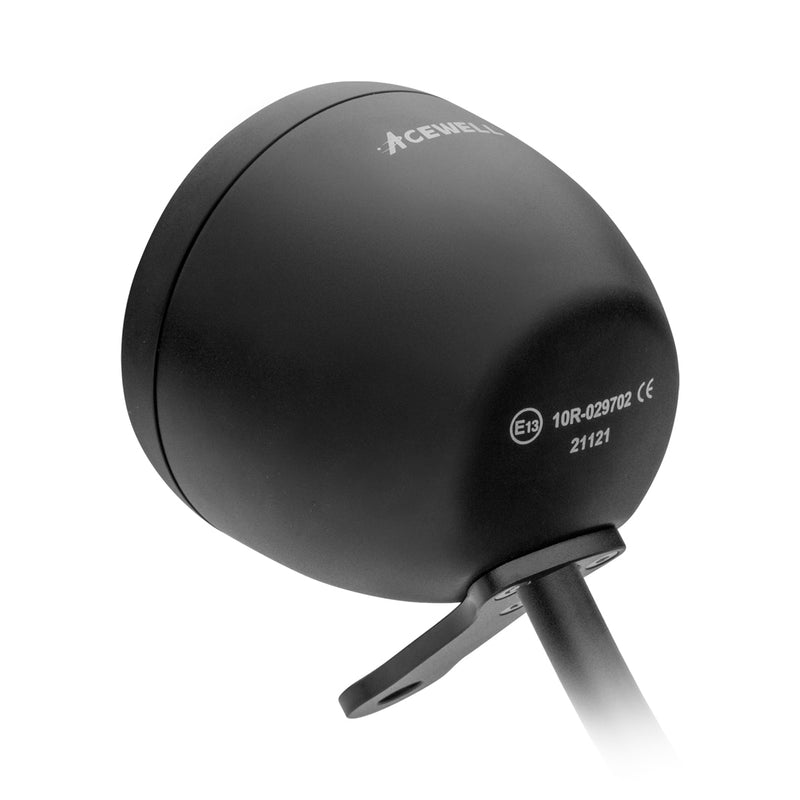

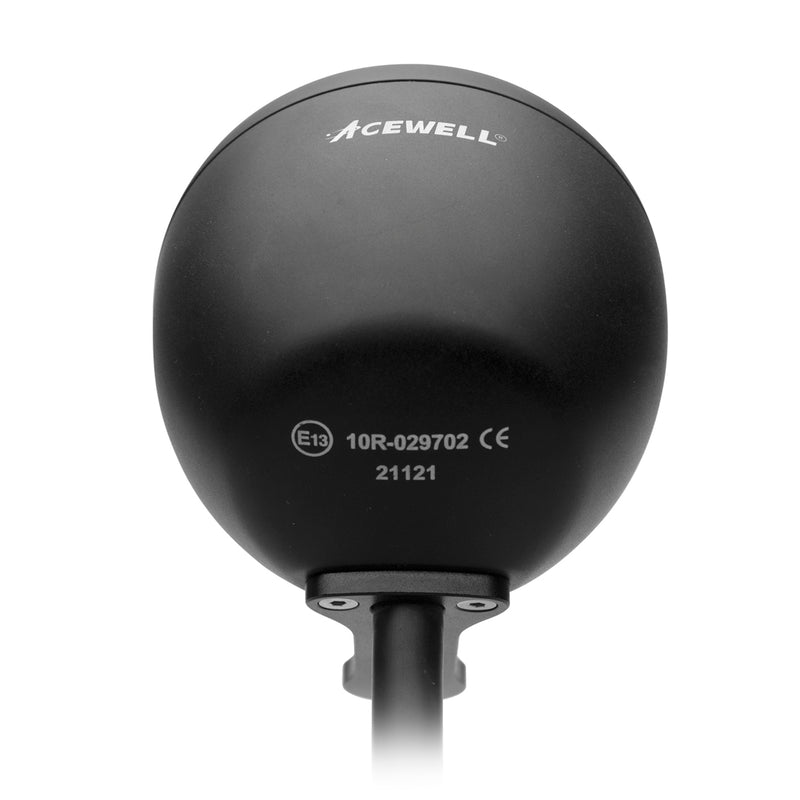

| Case | Black or chromed CNC pod |
| Power On | Ignition key |
| Enter Odometer Reading When New | Odometer distance can be altered when the number displayed is less than 30km or 18 miles, once this number is exceeded the distance is locked in memory and cannot be altered |
| Compatible Wheel Size | 1-3999mm |
